07.HQ20/HQ20T
07.HQ20/HQ20T
07.HQ20/HQ20T
- Detail
- Parameters
d (mm) | D1 | D3 (HQ20) | D3T HQ20T) | L2 | L1 |
10 | 24.6 | 22.95 | 20.5 | 8.74 | 25.60 |
11 | 27.79 | 23.90 | 22.8 | 8.74 | 25.60 |
12 | 27.79 | 23.90 | 24.0 | 8.74 | 25.60 |
13 | 30.95 | 26.70 | 24.2 | 10.32 | 25.60 |
14 | 30.95 | 26.70 | 26.7 | 10.32 | 25.60 |
15 | 30.95 | 26.70 | 26.7 | 10.32 | 25.60 |
16 | 34.15 | 31.10 | 30.4 | 10.32 | 25.60 |
18 | 34.15 | 31.10 | 30.4 | 10.32 | 25.60 |
19 | 35.70 | 33.40 | 30.4 | 10.32 | 25.60 |
20 | 37.30 | 33.40 | 33.4 | 10.32 | 25.60 |
22 | 40.50 | 39.20 | 33.4 | 10.32 | 25.60 |
24 | 40.50 | 39.20 | 38.0 | 10.32 | 25.60 |
25 | 47.63 | 46.30 | 39.3 | 10.32 | 25.60 |
28 | 50.80 | 49.40 | 42.0 | 10.32 | 25.60 |
30 | 50.80 | 49.40 | 43.9 | 11.99 | 33.54 |
32 | 53.95 | 49.40 | 45.8 | 11.99 | 33.54 |
33 | 53.98 | 52.60 | 45.8 | 11.99 | 33.54 |
35 | 53.98 | 52.60 | 49.3 | 11.99 | 33.54 |
38 | 57.15 | 55.80 | 52.8 | 11.99 | 33.54 |
40 | 60.35 | 62.00 | 55.8 | 11.99 | 33.54 |
42 | 63.50 | 66.00 | 58.8 | 11.99 | 40.68 |
43 | 63.50 | 66.00 | 58.8 | 11.99 | 40.68 |
44 | 63.50 | 66.00 | 58.8 | 11.99 | 40.68 |
45 | 63.50 | 66.00 | 61.0 | 11.99 | 40.68 |
48 | 66.70 | 66.00 | 64.0 | 11.99 | 40.68 |
50 | 69.85 | 71.65 | 66.0 | 13.50 | 40.68 |
53 | 73.05 | 73.30 | 71.5 | 13.50 | 41.20 |
55 | 76.00 | 78.40 | 71.5 | 13.50 | 41.20 |
58 | 79.40 | 82.00 | 79.40 | 13.50 | 41.20 |
60 | 79.40 | 82.00 | 79.6 | 13.50 | 41.20 |
63 | 82.50 | 84.90 | 81.5 | 13.50 | 41.20 |
65 | 92.10 | 88.40 | 84.6 | 15.90 | 49.20 |
70 | 95.52 | 92.60 | 90.0 | 15.90 | 49.20 |
73 | 98.45 | 94.85 | 92.0 | 15.90 | 49.20 |
75 | 101.65 | 101.90 | 96.8 | 15.90 | 49.20 |
d (inch) | D3 (HQ20) | D3T (HQ20T) | D1 | L2 | L1 |
0.375 | 22.95 | 20.00 | 24.60 | 8.74 | 25.60 |
0.500 | 23.90 | 22.80 | 27.79 | 8.74 | 25.60 |
0.625 | 26.70 | 26.70 | 30.95 | 10.32 | 25.60 |
0.750 | 31.10 | 30.40 | 34.15 | 10.32 | 25.60 |
0.875 | 33.40 | 33.40 | 37.30 | 10.32 | 25.60 |
1.000 | 43.20 | 39.30 | 40.50 | 10.32 | 25.60 |
1.125 | 46.30 | 42.00 | 47.63 | 11.99 | 33.54 |
1.250 | 49.40 | 45.80 | 50.80 | 11.99 | 33.54 |
1.375 | 52.60 | 49.30 | 53.98 | 11.99 | 33.54 |
1.500 | 55.80 | 52.80 | 57.15 | 11.99 | 33.54 |
1.625 | 62.20 | 55.50 | 60.35 | 11.99 | 33.54 |
1.750 | 66.00 | 61.00 | 63.50 | 11.99 | 40.68 |
1.875 | 66.60 | 64.00 | 66.70 | 11.99 | 40.68 |
2.000 | 73.00 | 66.00 | 69.85 | 13.50 | 40.68 |
2.125 | 73.30 | 71.50 | 73.05 | 13.50 | 41.20 |
2.250 | 78.40 | 79.60 | 76.20 | 13.50 | 41.20 |
2.375 | 82.00 | 79.60 | 79.40 | 13.50 | 41.20 |
2.500 | 84.90 | 81.50 | 82.55 | 13.50 | 41.20 |
2.625 | 88.40 | 84.60 | 92.10 | 15.90 | 49.20 |
2.750 | 92.60 | 90.00 | 95.25 | 15.90 | 49.20 |
2.875 | 94.85 | 92.00 | 98.45 | 15.90 | 49.20 |
3.000 | 101.90 | 96.80 | 101.65 | 15.90 | 49.20 |
Type

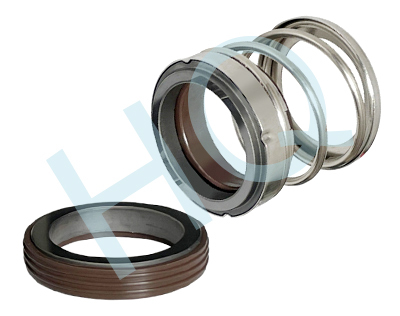

Elastomeric bellow mechanical seal
Replacement
Vulcan 20, AES P02/P02T，Crane 2(N Seat )，BURGMANN MG920/D1-G50，Roten 21，Flowserve 200,Latty T200
Temperature
-30℃ to +200℃
Pressure
≤1.0Mpa
Speed
≤13m/s
Material
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
