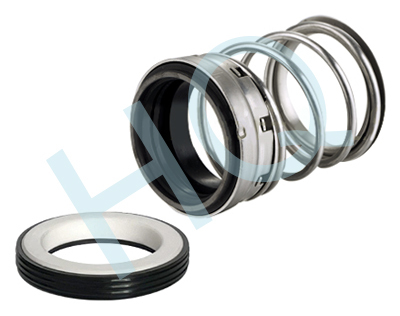

01.HQ1/HQ1B
01.HQ1/HQ1B
01.HQ1/HQ1B
- Detail
- Parameters
HQ1
d (Inch) | d (mm) | D1 | D2 | D3 | L1 | L2 |
0.500 | 12 | 25.40 | 19.05 | 23.80 | 30.16 | 7.93 |
14 | 31.75 | 23.80 | 27.76 | 33.32 | 10.28 | |
0.625 | 16 | 31.75 | 23.80 | 27.76 | 33.32 | 10.28 |
0.750 | 18 | 34.93 | 26.98 | 30.94 | 33.32 | 10.28 |
20 | 38.10 | 30.15 | 34.11 | 34.93 | 10.28 | |
0.875 | 22 | 38.10 | 30.15 | 34.11 | 34.93 | 10.28 |
24 | 41.28 | 33.32 | 38.10 | 39.67 | 11.10 | |
1.000 | 25 | 41.28 | 33.32 | 38.10 | 39.67 | 11.10 |
1.125 | 28 | 44.44 | 36.50 | 41.28 | 41.28 | 11.10 |
30 | 47.63 | 37.90 | 46.02 | 41.28 | 11.10 | |
1.250 | 32 | 47.63 | 37.90 | 46.02 | 41.28 | 11.10 |
33 | 50.80 | 42.84 | 48.68 | 42.85 | 11.00 | |
1.375 | 35 | 50.80 | 42.84 | 48.68 | 42.85 | 11.00 |
1.500 | 38 | 53.98 | 46.05 | 51.85 | 42.85 | 11.00 |
1.625 | 40 | 60.38 | 50.80 | 58.10 | 50.80 | 12.70 |
43 | 63.50 | 53.97 | 61.27 | 50.80 | 12.70 | |
1.750 | 45 | 63.50 | 53.97 | 61.27 | 50.80 | 12.70 |
1.875 | 48 | 66.68 | 57.15 | 64.44 | 53.98 | 12.70 |
48 | 69.85 | 60.32 | 67.21 | 53.98 | 12.70 | |
2.000 | 50 | 69.85 | 60.32 | 67.21 | 53.98 | 12.70 |
2.125 | 53 | 76.20 | 60.32 | 72.02 | 60.33 | 14.28 |
2.250 | 55 | 79.38 | 61.90 | 75.30 | 60.33 | 14.28 |
2.375 | 60 | 82.55 | 67.39 | 78.30 | 63.50 | 14.28 |
2.500 | 63 | 85.73 | 68.25 | 81.54 | 63.50 | 14.28 |
2.625 | 65 | 85.73 | 71.24 | 86.22 | 69.85 | 15.90 |
2.750 | 70 | 88.90 | 74.60 | 89.40 | 73.03 | 15.90 |
2.875 | 73 | 95.25 | 77.77 | 92.57 | 73.03 | 15.90 |
3.000 | 75 | 98.43 | 80.95 | 95.75 | 73.03 | 15.90 |
HQ1B
d (inch) | d0 (max) | D1 | D2 | D3 | D4 (min) | L1 | L2 | L65 |
1.000 | 0.875 | 1.265 | 1.312 | 1.500 | 1.750 | 1.875 | 0.437 | 0.343 |
1.125 | 1.000 | 1.750 | 1.437 | 1.625 | 1.875 | 1.937 | 0.437 | 0.343 |
1.250 | 1.125 | 1.875 | 1.563 | 1.812 | 2.062 | 1.937 | 0.437 | 0.343 |
1.375 | 1.250 | 2.000 | 1.687 | 1.870 | 2.125 | 2.000 | 0.437 | 0.343 |
1.500 | 1.375 | 2.125 | 1.813 | 2.000 | 2.250 | 2.000 | 0.437 | 0.343 |
1.625 | 1.500 | 2.375 | 2.000 | 2.250 | 2.500 | 2.375 | 0.500 | 0.437 |
1.750 | 1.625 | 2.500 | 2.125 | 2.375 | 2.625 | 2.375 | 0.500 | 0.437 |
1.875 | 1.750 | 2.625 | 2.25 | 2.500 | 2.750 | 2.500 | 0.500 | 0.437 |
2.000 | 1.875 | 2.750 | 2.375 | 2.625 | 2.937 | 2.500 | 0.500 | 0.437 |
2.125 | 2.000 | 3.000 | 2.375 | 2.812 | 3.125 | 2.750 | 0.562 | 0.500 |
2.250 | 2.125 | 3.125 | 2.437 | 2.937 | 3.250 | 2.750 | 0.562 | 0.500 |
2.375 | 2.250 | 3.250 | 2.563 | 3.062 | 3.375 | 2.875 | 0.562 | 0.500 |
2.500 | 2.375 | 3.375 | 2.687 | 3.187 | 3.500 | 2.875 | 0.562 | 0.500 |
2.625 | 2.500 | 3.375 | 2.812 | 3.375 | 3.750 | 3.125 | 0.625 | 0.562 |
2.750 | 2.625 | 3.500 | 2.937 | 3.500 | 3.875 | 3.125 | 0.625 | 0.562 |
2.875 | 2.750 | 3.750 | 3.062 | 3.625 | 4.000 | 3.250 | 0.625 | 0.562 |
3.000 | 2.875 | 3.875 | 3.187 | 3.750 | 4.187 | 3.250 | 0.625 | 0.562 |
3.125 | 2.875 | 4.000 | 3.312 | 4.000 | 4.437 | 3.500 | 0.781 | 0.625 |
3.250 | 3.000 | 4.125 | 3.437 | 4.125 | 4.562 | 3.500 | 0.781 | 0.625 |
3.375 | 3.125 | 4.250 | 3.562 | 4.250 | 4.687 | 3.500 | 0.781 | 0.625 |
3.500 | 3.250 | 4.375 | 3.687 | 4.375 | 4.812 | 3.500 | 0.781 | 0.625 |
3.625 | 3.375 | 4.500 | 3.806 | 4.500 | 4.937 | 3.625 | 0.781 | 0.625 |
3.750 | 3.500 | 4.625 | 3.937 | 4.625 | 5.062 | 3.625 | 0.781 | 0.625 |
3.875 | 3.750 | 4.750 | 4.062 | 4.750 | 5.187 | 3.750 | 0.781 | 0.625 |
4.000 | 3.875 | 4.875 | 4.187 | 4.875 | 5.312 | 3.750 | 0.781 | 0.625 |
